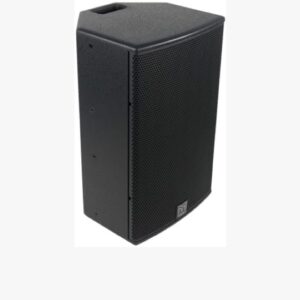

TYPE: Compact, two-way passive

FREQUENCY RESPONSE: 65Hz-18kHz ± 3dB -10dB @ 55Hz

DRIVERS: 12” (300mm)/2.5” (63.5mm) voice coil LF driver 1” (25mm) exit HF compression driver

RATED POWER: 300W AES, 1200W peak

SENSITIVITY: 97dB

MAXIMUM SPL: 22dB continuous, 128dB peak

NOMINAL IMPEDANCE: 8 ohms

DISPERSION: (-6dB) 80? horizontal, 50? vertical

CROSSOVER: 2.2 kHz passive

ENCLOSURE: 38 litres, multi-laminate birch ply

FINISH : Textured black paint

PROTECTIVE GRILLE: Black perforated steel

CONNECTORS: 2 x Neutrik NL4

PIN CONNECTIONS: FR+,- : 1+,1- , Link thro’: 2+,2-

FITTINGS: 10 x M8, 4 x M8 threaded inserts 1 x mounting pole socket 1 x pocket handle

DIMENSIONS: (W) 398mm x (H) 571mm x (D) 365mm (W) 15.6ins x (H) 22.5ins x (D) 14.3ins

WEIGHT: 21kg (46lbs)
